AMSOIL Universal Synthetic Marine Gear Lube

Woods Bros. Racing Logo

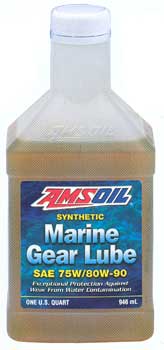

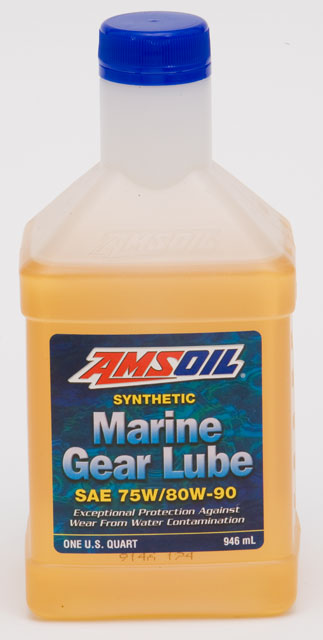

Amsoil Marine Gear Lube 75W/80W-90

Universal Synthetic Marine Gear Lube SAE 75W/80W-90 (AGM)
High Performance lubricant engineered to meet the demands of marine applications. AMSOIL Universal Synthetic Marine Gear Lube provides:

  • Excellent Gear and Bearing Protection even
    when contaminated with 10% water
  • Reduced Friction and Wear
  • Rust and Corrosion Protection
  • Long Seal Life
  • Superior Foam Prevention

See Retail Pricing Information OR Request a Quote From Us

Package sizes include:

13-oz. Tube
13-oz. Tubes (case of 6)
1-Quart Bottle
1-Quart Bottles (case of 12)
5-Gallon Pail
16-Gallon Keg
55-Gallon Drum



PRODUCT DESCRIPTION
AMSOIL Universal Synthetic Marine Gear Lube is an exclusive AMSOIL formulation of synthetic base oils and high performance additives that address the specific concerns of marine applications. It is extreme pressure (EP) additive fortified for superior protection of fast accelerating, high torque/horsepower engines. It protects against shock loading from cavitation of heavily loaded engines.

AMSOIL Universal Synthetic Marine Gear Lube is water resistant. It maintains extreme pressure protection even when contaminated with as much as 10% water. It promotes longer seal life, preventing excessive water leakage. AMSOIL Universal Synthetic Marine Gear Lube protects against rust and is compatible with aluminum, copper and brass alloys.

APPLICATIONS
AMSOIL Universal Synthetic Marine Gear Lube is recommended for fresh and salt water applications requiring either 75W-90 or 80W-90 viscosity grade and meeting either API GL-4 or GL-5 performance standards.

Examples of AMSOIL Universal Synthetic Marine Gear Lube applications include:

Outboard Lower Units:

Mercury/Mariner
Johnson/Evinrude
Bombardier
Honda
Yamaha
Suzuki
Force/US Marine
Nissan
Tohatsu
Harbormaster Marine Outboard Drives
Sears Gamefisher and Seagull

Sterndrives:

Mercruiser-Bravo
OMC/Bombardier
Volvo-Penta
Yanmar
Konrad
Marine Drive Systems

V-Drives:

Casale & Menkens

Bow & Tunnel Thrusters:

Harbormaster Marine

Marine Transmissions:

ZF Marine Transmission

Marine gear oils operate in environments subject to water contamination. The chart below demonstrates the ability of AMSOIL Universal Synthetic Marine Gear Lube to maintain designed qualities such as extreme pressure/anti-wear performance and resistance to foaming, even when subjected to 10% water contamination.

The Falex Procedure is measurement of a gear lube's extreme pressure and anti-wear properties. A high value in the Falex Extreme Pressure Test relates to extra extreme pressure protection. AMSOIL Universal Synthetic Marine Gear Lube is not affected by water and provides 50% more extreme pressure protection for long gear and bearing life.

The presence of foam in a lubricant disrupts oil film and promotes wear. Water contamination can increase the likelihood of foaming. Industry standard testing demonstrates zero foam in both new and water-contaminated AMSOIL Universal Synthetic Marine Gear Lube. Other conventional gear lubes can foam when mixed with water, as seen in the graph.

Extreme Pressure and Foam Stability Testing
Test AMSOIL Universal Synthetic Marine Gear Lube (AGM) Conventional Gear Lube (A) Conventional Gear Lube (B)
FALEX Extreme Pressure Load Test B (LbF)
(ASTM D-3233B)
no water with 10% water
1500 1500
no water with 10% water
1100 1000
no water with 10% water
1000 1000

Foam Stability
(ASTM D-892)
Sequence I
Sequence II
Sequence III

no water with 10% water
0/0
0/0
0/0
0/0
0/0
0/0
no water with 10% water
0/0
0/0
0/0
0/0
0/0
0/0
no water with 10% water
0/0
0/0
0/0
375 /290
590/0
380/305

TYPICAL TECHNICAL PROPERTIES
AMSOIL Universal Synthetic Marine Gear Lube75W/80W-90 (AGM)

Kinematic Viscosity @ 100°C, cSt (ASTM D-445)

14.7

Kinematic Viscosity @ 40°C, cSt (ASTM D-445)

116.0

Viscosity Index (ASTM D-2270) 130

Flash Point °C (°F) (ASTM D-92)

216 (420.8)

Pour Point °C (°F) (ASTM D-97)

-43 (-45)

Falex Procedure B (ASTM D-3233) (failure load, LbF.) 1500
Foam Stability (ASTM D-892) (20/50/20 maximum) 0/0/0

AMSOIL Universal Synthetic Marine gear Lube is compatible with other commercially available conventional and synthetic marine gear lubes.

Follow manufacturers recommended service intervals.

It is generally a good idea to change gear lube at the end of the season prior to storage.
